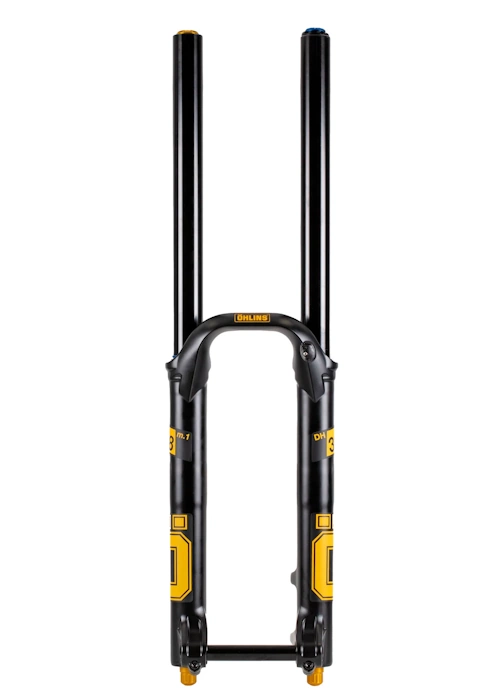

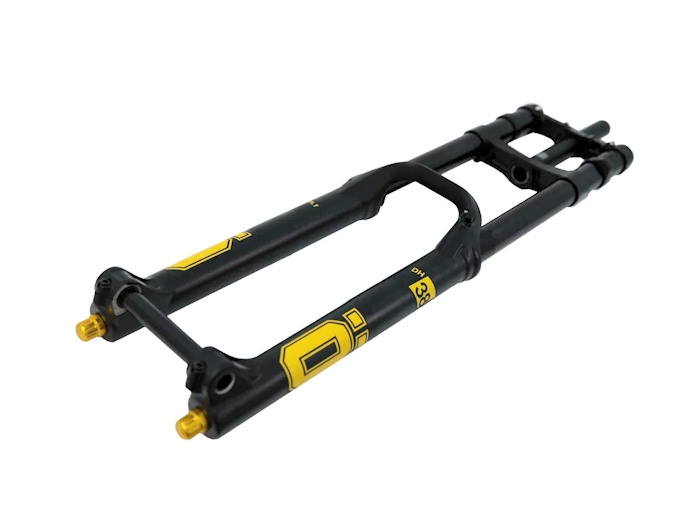

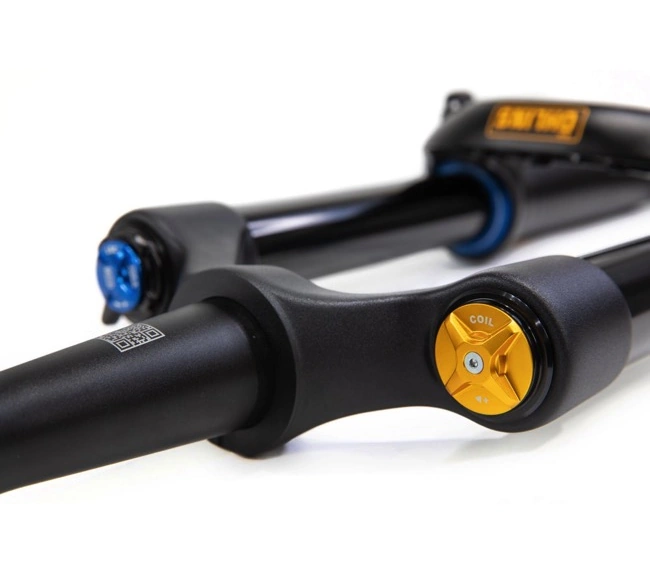

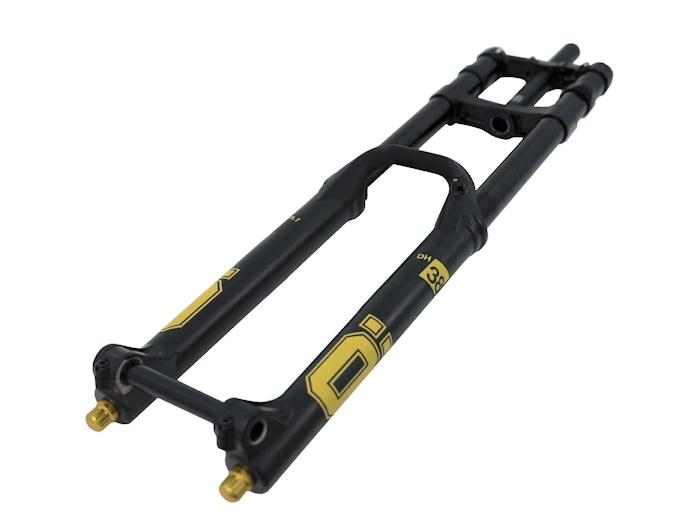

Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29″



Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29"
Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29" - Image 2
Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29" - Image 3
Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29" - Image 4
Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29" - Image 5
Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29" - Image 6

Ohlins Downhill Mountain Bike DH38 M.2 Air / Coil Front Forks 27.5 & 29″

$1,842.00

DH38 M.2 Downhill Forks (Crown is not included)

NOTE: Check with us regarding availability, product is discontinued

Specifications:
Wheel size: 27.5″ or 29″
Travel: 200 mm
Stanchion diameter: 38 mm
Crown offsets: 46/50/54/58 mm
Axle: 20 x 110 mm Boost DH
Floating axle for minimum friction
Cartridge based damper and air spring (air fork)

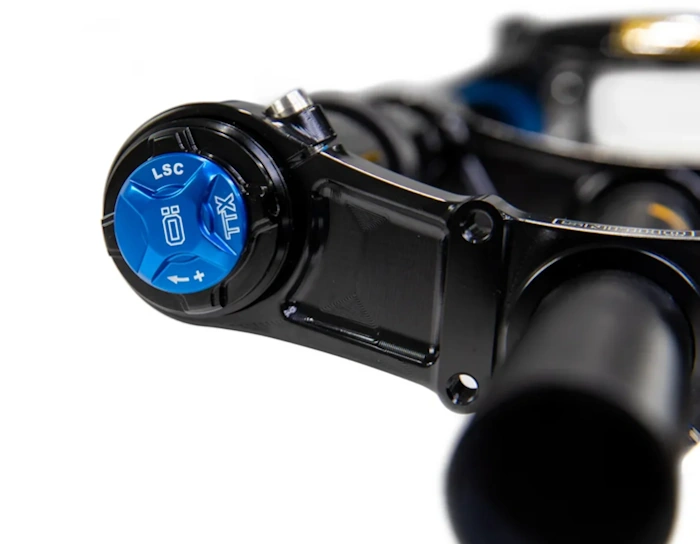

Adjustments: High/ low-speed compression and rebound
Weight: ~2820 g (with axle)
Designed for 200/203 mm brake discs
Race proven setting bank
Fully serviceable and rebuildable
2 years limited warranty

ADJUSTMENT:
Spring rate and progression external via air pressure (air fork)
3-click high speed compression damping
16-click low speed compression damping
16-click rebound damping



Shipping: 1 - 5 weeks
Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: DH38-M2 Categories: ,

Description

DH38 M.2 Downhill Front Fork

Suitable for downhill and freeride bikes with dual crown fork compatibility and Boost DH hub spacing. Check frame clearance and axle-to-crown height for fitment with your specific setup

Fork Versions:
200 mm Air Fork, part no. FDMTB 3820 2510
200 mm Coil Fork, part no. FDMTB 3820 2520

Optional Fork Crown Sets:
Offset 46mm, 50mm, 54mm or 58mm
Purchased separately. Not included with forks





Additional information

Weight 4 kg
Dimensions 90 × 30 × 16 cm
Fork Model

200mm Air, 200mm Coil
