Ohlins Air Fork RXF38 M.3 Air / Coil TTX18 29”

$1,534.00

RXF38 M.3 TTX18 Forks

Technical Specifications:
TTX18 damping system
Independent cartridge air spring and damper systems
160-180 mm travel at 29″ wheel size
Designed for 200 mm rotor size (max. 230 mm)
Easy to tune three-chamber air spring system (positive-, negative- and ramp up chamber)
Updated air spring with spring booster & spacer compatibility
38 mm stanchions & new chassis with reduced friction
44 mm crown offset

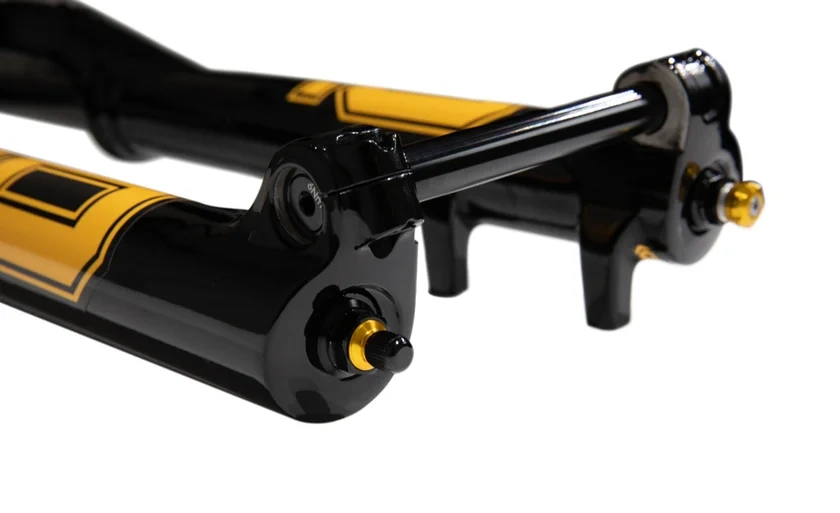

Floating axle design for minimal friction
Approved for eMTB use
Compatible with maximum tire sizes up to 29 x 2.6″
Weight from 2320 grams
Rebuild-able
2 year warranty

ADJUSTMENT:
3-click high speed compression damping
16-click low speed compression damping
16-click rebound damping

Shipping: 2 - 5 days

Fork Model

Clear

Add to WishlistRemove from Wishlist

Description

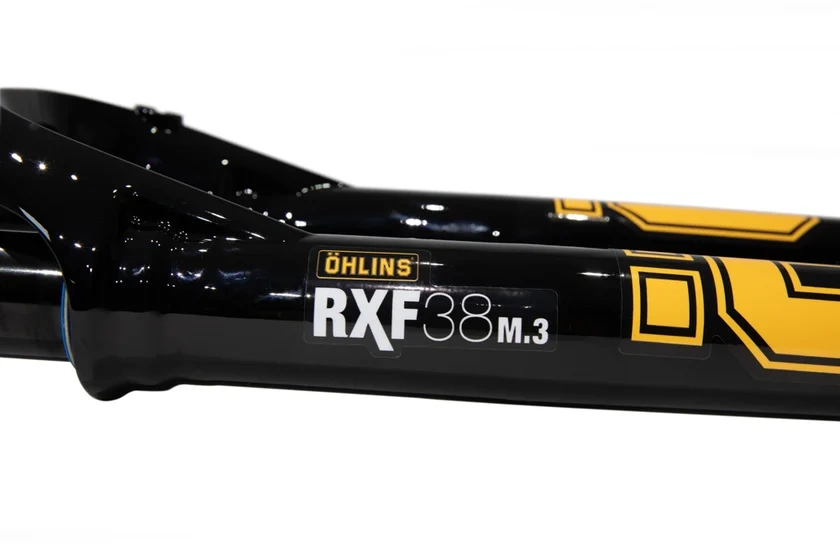

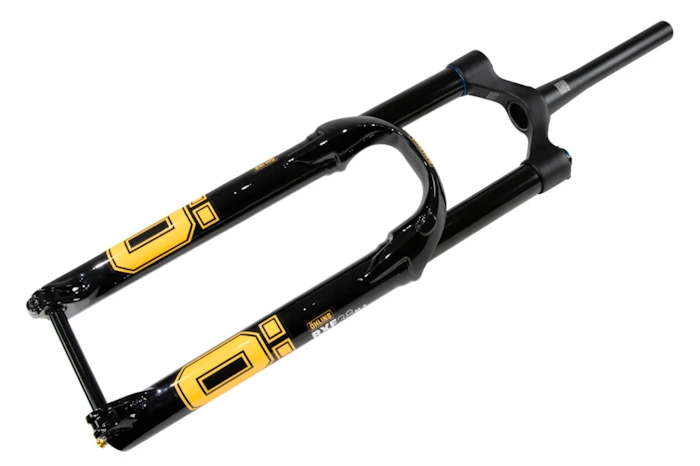

RXF38 M.3 Front Fork

The new RXF38 m.3 features reworked internals and updated settings, built around the race-proven TTX18 cartridge. This stiff fork is the perfect match for e-MTBs, aggressive trail riding and Enduro racing, delivering significant performance upgrades on every ride

Fork Versions:
RXF38 m.3 Air 29, 160 mm, 44 mm Offset, part no. FGMTB 3816 2510
RXF38 m.3 Air 29, 170 mm, 44 mm Offset, part no. FGMTB 3817 2510
RXF38 m.3 Air 29, 180 mm, 44 mm Offset, part no. FGMTB 3818 2510
RXF38 m.3 Coil 29, 170 mm, 44 mm Offset, part no. FGMTB 3817 2520
