Name: Ohlins Moutain Bile Fork RXF34 M.2 Air OTX18 29''
SKU: RXF34-M2
Availability: InStock

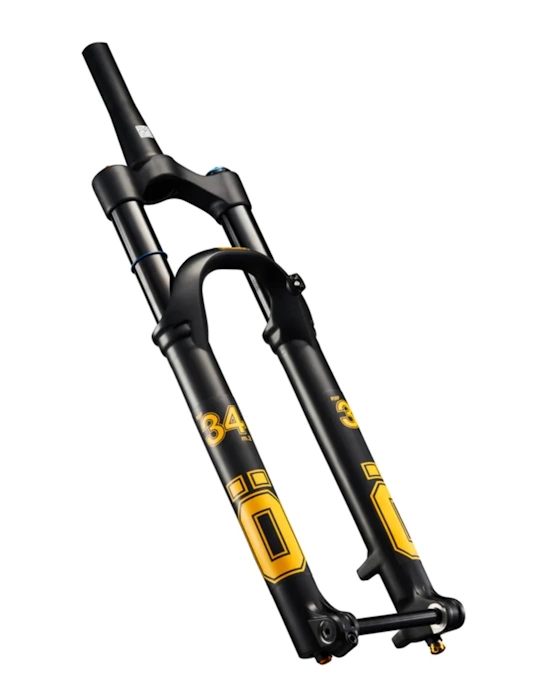

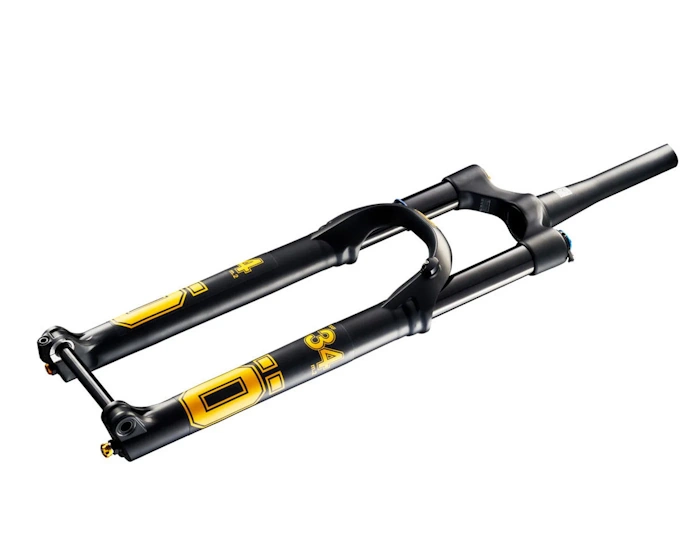

Ohlins Moutain Bile Fork RXF34 M.2 Air OTX18 29”

$1,305.00

RXF34 M.2 OTX18 Forks

Technical Specifications:

Trail-optimized OTX18 damper
Lightweight air spring
34-mm stanchion diameter
Wheel size: 29 in
44 mm offset
Fork travel: 120-140 mm

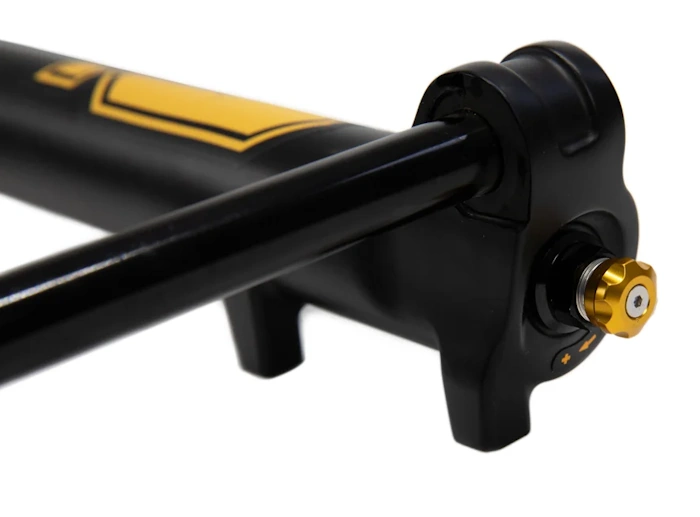

Floating axle to minimize friction
eMTB-approved
Optimized for 180-mm discs (203 mm max)
Maximum tire size: 29 x 2.6 in
Axel to crown: 531 mm @ 120-mm stroke
Axel to crown: 541 mm @ 130-mm stroke
Axel to crown: 551 mm @ 140-mm stroke
Weight: 1698-1752 g
Rebuild-able
2 year warranty

ADJUSTMENT:
3-click high speed compression damping
15-click low speed compression damping
15-click rebound damping

Shipping: 2 - 4 days

Fork Model

Clear

Add to WishlistRemove from Wishlist

SKU: RXF34-M2 Categories: MTB Parts, Suspension

Description

RXF34 M.2 Air Front Fork

RXF34 m.2 replaces the original RXF34 and offers a 120–140 mm short-travel setup optimized for lightweight 29er trail bikes. Weighing from just 1698 g, it features an updated air spring and OTX18 damper tailored for modern trail riding, while retaining the race-proven DNA of its long-travel siblings, the RXF36 m.2 and RXF38 m.2

Fork Versions:
RXF34 M.2 Air OTX18 29’/44 /120mm
RXF34 M.2 Air OTX18 29’/44 /130mm
RXF34 M.2 Air OTX18 29’/44 /140mm
