Brembo RCS (Ratio-Click-System) Brake and Clutch Radial Master Cylinders

from $275.00

Select from the following options:

14RCS, 15RCS, 17RCS or 19RCS – Brake Masters
14RCS, 16RCS, 17RCS and 19RCS – Clutch Masters

NOTES:

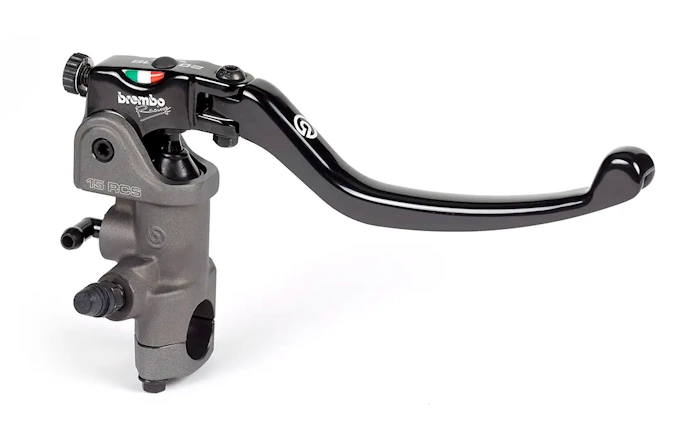

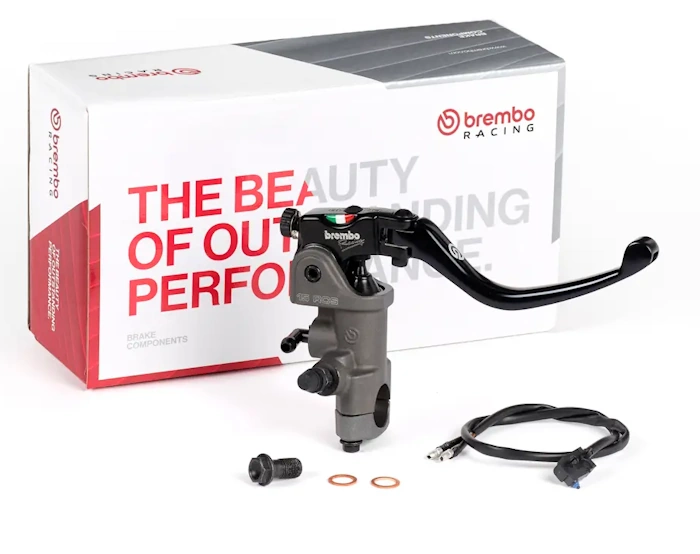

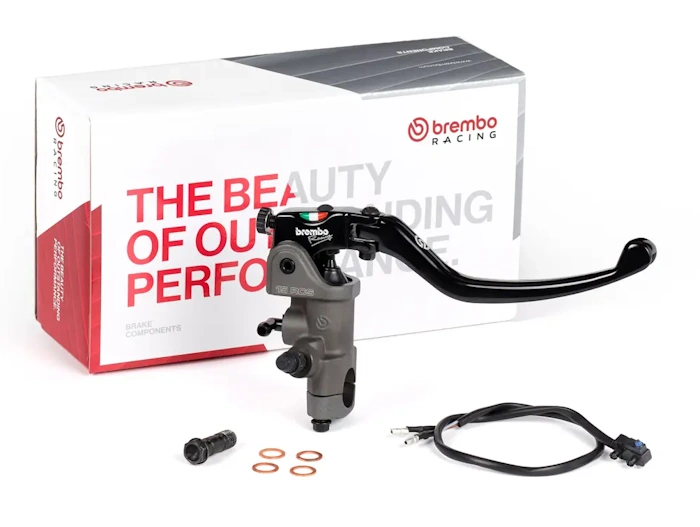

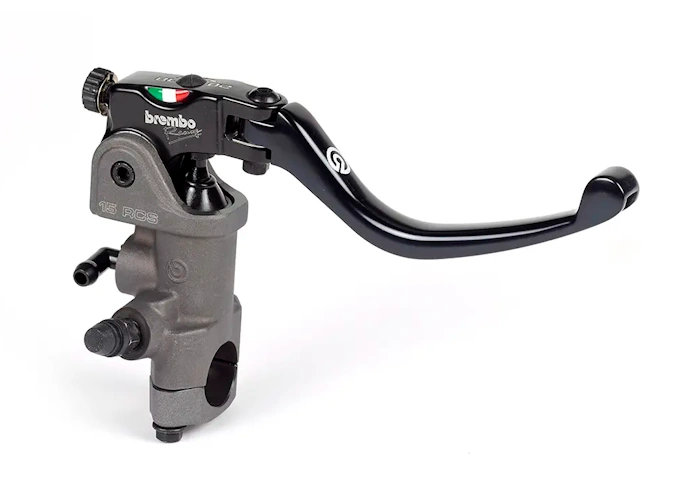

15RCS BRAKE master comes with optional SHORT or STD length lever
All masters come with a banjo bolt kit, brake light switch is included for all brake master cylinders
All masters will fit STD 7/8″ (22mm) handlebars

Select Master Cyl Type

Clear

Add to WishlistRemove from Wishlist

Description

Brembo Front Brake or Clutch Master Cylinders (Select cylinder size and type)

The RCS masters offer flexibility to change the lever ratio at the turn of a screw. This would enable the rider to decide on the pivot distance option fitted the street or suited to track day or amateur racing. The options are achieved by the use of an eccentric drive which is turned by the simple screw mechanism and has a color coded pivot rod end that allows the rider at a glance to understand the current settings

Additional information

Weight	1 kg
Dimensions	29 × 26 × 15 cm
Select Master Cyl Type	14RCS Brake Cyl, 14RCS Clutch Cyl, 15RCS Brake Cyl Short Lever, 15RCS Brake Cyl STD Lever, 16RCS Clutch Cyl, 17RCS Brake Cyl, 17RCS Clutch Cyl, 19RCS Brake Cyl, 19RCS Clutch Cyl
