TTX GP Rear Shock Absorber Triumph Daytona 675 675R 765 R

Ohlins TTX GP Rear Shock Absorber BMW S1000RR S 1000 RR

$1,648.00

Applicable Fitment:

BM-570 – S1000RR (2023-25)
BM-568 – S1000RR (2019-22)

BM568 Shocks fits 2023-25 model as well

Select shock model and spring rate (or provide rider weight information) EMAIL to: BohemianRacing@gmail.com

Spring rates 50, 52, 54, 56, 58, 60, 64, 75 are available as well

Features:

TTX-technology with no cavitation risk
Rebound and compression adjustment straight from MotoGP
Adjustment needles with different flow restriction behavior to improve chassis feedback
Adjustable Compression and Rebound
Adjustable Length, BM568 – 369 +2/-10 mm; BM570 – 369 +7/-5mm
36mm Piston Diameter
Low-friction Shaft / Seal Head design
Fully Serviceable and Repairable
Wider and more precise adjustment range
Adjustment possible by hand or with hexagon tool

Shock Model

Spring Rate Street

Clear

Add to WishlistRemove from Wishlist

Description

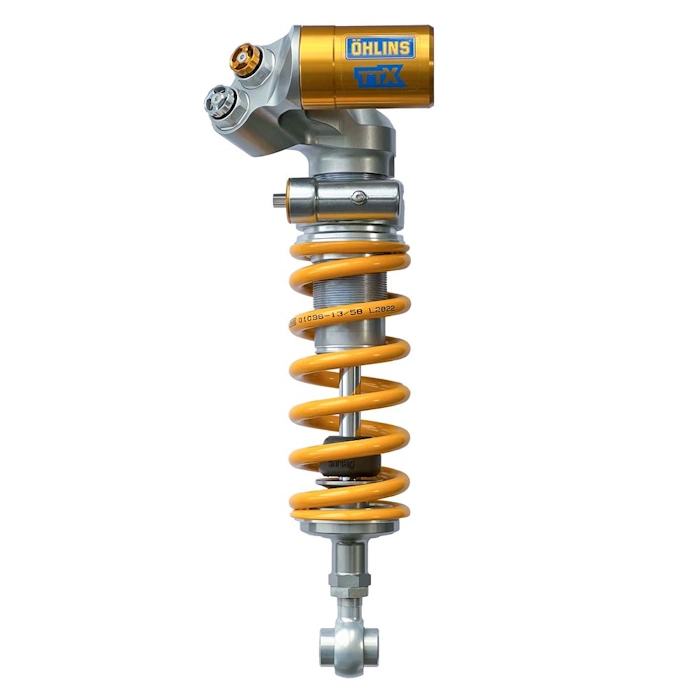

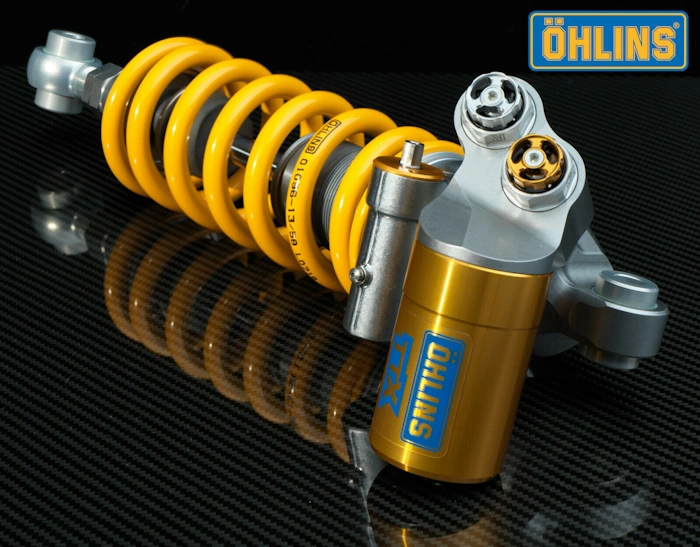

Ohlins TTX GP Rear Shock for BMW S1000RR models

The TTX GP shock features a new type of valve which gives better feedback to the rider, also a new piston
and band which together with the new valves enhances grip, stability, feedback, and consistency.

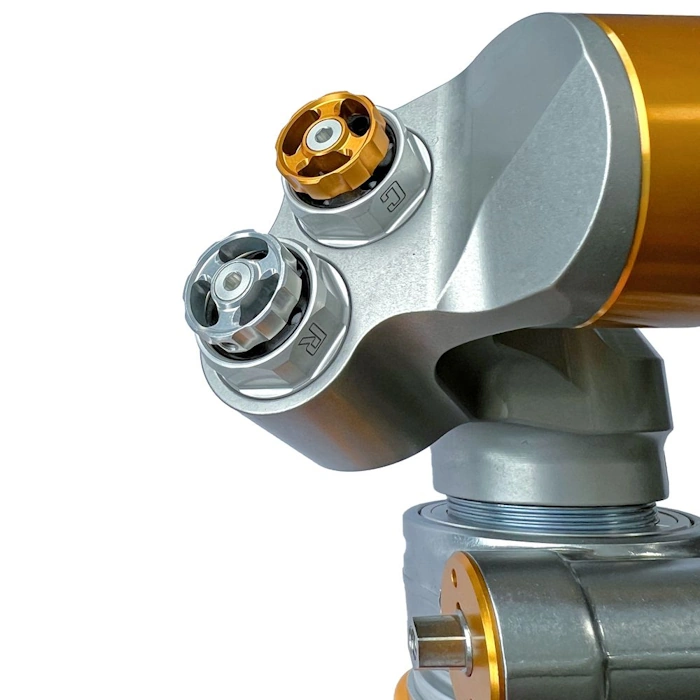

The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design

The shock is based on the TTX 36 (Twin Tube) technology developed for the latest Supersport models
as a complement to the top of the line TTX GP shocks. It has a traditional C-spanner type pre load adjustment,
easily accessible rebound and compression adjustment on the cylinder head. The result is a shock absorber
with the long term technology developments from Öhlins experience in MotoGP and WSBK
